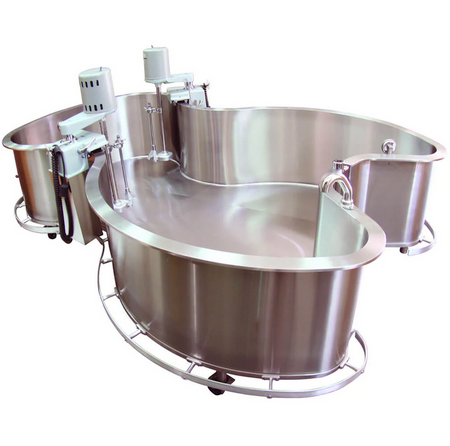

Whitehall Full-Body Immersion 270 Gallon Hubbard Tank (F-270-S)
The Whitehall Full Immersion 270 Gallon Hubbard Tank with its heavy gauge stainless steel construction and dual turbine assemblies and figure-eight design provide the dimensions, configuration, and logistics for enhanced patient care by providing easy patient accessibility, carefully controlled water temperature, and patient comfort for intervention strategies to treat burn victims through total immersion in hydrotherapy, or other patients in need of immersion therapy.
Specifications of the Whitehall Full Immersion 270 Gallon Hubbard Tank
- Tank Length: 93”
- Tank Width: 64”
- Tank Depth: 22”
- Tank Height: 34”
- Tank Capacity: 270 gallons
Features of the Whitehall Full Immersion 270 Gallon Hubbard Tank
- Seamless welded construction fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish, and comes standard with a headrest
- Tank rim is reinforced with a concealed stainless-steel rod for extra strength
- Tank bottom is seamless, coved (rounded) design for effective cleaning to minimize bacterial buildup
- A reinforced stainless steel base is supported by adjustable stainless steel legs
- Tank fittings are two 1-1/4” NPT tube overflows, one 1-1/4” NPT filler spout, one lever operated quick open/close drain valve and an adjustable head rest.
Twin Turbine Features
- Mounted on carriages with automatic counter balance, and the assemblies can be moved along the tank length to provide the most targeted treatment positions
- Spring loaded raising and lowering adjustment ability and locking device for height and water agitation direction permits focused targeting of the intended body area to be treated
- Each assembly is equipped with Underwriters Laboratory listed ½ HP jet pump motor
- Motor is protected by an ABS plastic shell, has an automatic thermal overload protector, and lifetime sealed bearings
- All parts contacting water are stainless steel, chrome plated brass or bronze
Thermometer: Provided with a dual scale, adjustable calibration, and a stem inserted into a retainer to prevent rattle during whirlpool agitation.
Tank Finish: Stainless Steel. Additional fee for options:
- Black Color Environ-Glaze (EGO7)
- White Color Environ-Glaze (EG10)
Turbine Voltage: 110V (220V cord type – European, United Kingdom, Australia, India, Israel)
Compatible Accessories
HR Adjustable Head Rest. This device supports the patient’s head during treatment and is fabricated from stainless steel and comes with a cover.
