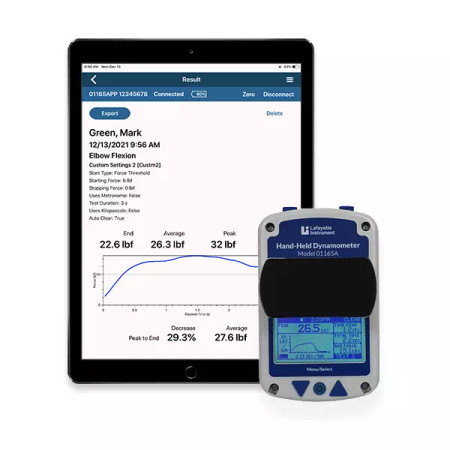

Lafayette Hand-Held Dynamometer (with DynoData)
This new Lafayette Hand-Held Dynamometer combines all of the features of the previous model with the addition of:
- An algometer attachment
- Advanced menus to store testing setups
- Increased storage
- Improved battery life
- Includes the upgraded dynamometer, access to DynoData application, and the Hand-Held Dynamometer Utility software.
The Lafayette Hand-Held Dynamometer features a wide range of customizable options for data storage, force over time graphs, preset test times, and force thresholds. The HHD includes 3 stirrups with an algometer attachment, user's guide, battery charger, sanitary covers, and carrying case.
The 01165APP includes an upgraded 01165APP dynamometer and access to the DynoData app.
What is DynoData?
DynoData is designed to be used as an enhancement to a model 01165APP Lafayette Instrument Hand-Held Dynamometer. It provides a wireless connection between the dynamometer and an iOS/Android device. This connection allows for a real-time visual display of the force being applied to the dynamometer, customization of test setups and settings, among other benefits.
Why the DynData? With simple controls, it will improve the organization and efficiency of patient care.
DynoData Application Features (iOS/Android)
| 01165 | 01165A | 01165APP | |
| Link device to DynoData mobile app | No | No | Yes |
| Edit and store dynamometer settings | No | No | Yes |
| View and record data in real time | No | No | Yes |
| Download and view data | No | No | Yes |
Already have an 01165A Hand-held Dynamometer?
The 01165A Lafayette Hand-held Dynamometer can be upgraded to the 01165APP using the Lafayette Hand-held Dynamometer Utility. Upgrading gives the device access to all the advanced features inside the Lafayette Hand-held Dynamometer Utility or DynoData for iOS/Android devices.
Hand-Held Dynamometer Utility Software
The Hand-Held Dynamometer Utility is a Windows app compatible with all Model 01165A and 01165APP Lafayette Hand-Held Dynamometers. The HHD Utility allows editing and storing hardware settings, downloading data, and exporting data.
Lafayette Hand-held Dynamometer Utility Features (Windows)
| 01165 | 01165A | 01165APP | |
| Edit and store dynamometer settings | No | Yes | Yes |
| Download and View data | No | Yes | Yes |
| Export data | No | No | Yes |
| Copy downloaded Time-Force data to clipboard | No | No | Yes |
| Copy downloaded table data to clipboard | No | No | Yes |
Tests Available using the Lafayette Hand-Held Dynamometer
Peak force
Time to reach peak force
Total test time
Average force
Real-time force
End force
Average force from peak to end
Percentage decrease from peak force to end force
Features
- Simple, ergonomic design fits easily into the palm of your hand
- Three (3) easy to change molded plastic stirrups with pads
- Can measure using kPa with new algometer attachment
- Automatic storage of data, with storage for up to 250 tests in device memory
- Tone to indicate start, stop, or metronome
- Powered by rechargeable lithium-ion battery
Specifications
- Size: 3.1" x 5.11" x 1.6" (8.03 cm x 12.98 cm x 4.1 cm)
- Range: 0 - 300 lbs (136.1 kg, 1335 N, 9999 kPa)
- Accuracy: ± 1 % over full scale or ± 0.2 lbs
- Battery Life: 12 hours
- Data Storage Capacity: 250 tests
