Intelect® Legend 2 offers the next generation of intuitive and intelligent user interface - designed with the therapist in mind. The Intelligent Interface allows complete customization of all waveforms and any parameters. The gray section saves up to 12 shortcuts on the home screen to start treatments within 2 button pushes. The green section contains the SPS menu, saved protocols and other clinical resources.

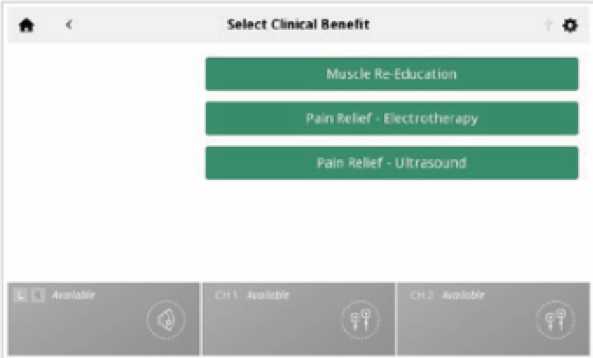

The Suggested Protocol Setting provides the clinician with suggested parameters for each treatment to help get started with confidence. The SPS menu allows therapists to set up a treatment by selecting an indication rather than having to select every waveform and parameter.

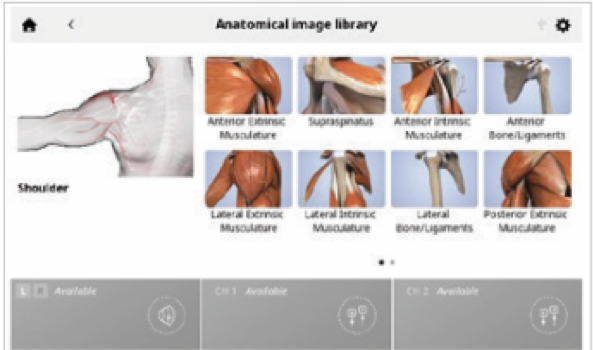

A High Resolution Anatomical Library illustrates an array of pathologies allowing simple explanation of condition and treatment to the patient.
The Intelect Legend 2 is ready for the future with the ability to easily update software for additional functionality. Free software upgrades and updated product manuals will be made available on chattanoogarehab.com along with simple instructions on how to perform any upgrades.
Other Key Features of the Intelect® Legend 2

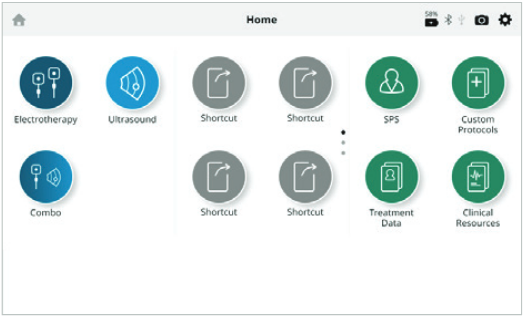

- Large Graphic Color Touch Screen: High resolution 7” capacitive touch screen was upgraded to highlight the anatomical library, provide real time treatment progress and clearly display treatment results after a session ends.
- New Ultrasound Applicator: Ergonomic design fit for the hand. Improved coupling detection and monitoring.
- 2-Channel Combo: Delivers both 2 Channel Electrotherapy (TENS and NMES) and Therapeutic Ultrasound either simultaneously or independently. Ultrasound therapy (1 and 3 MHz) and electrotherapy stimulation with twelve (12) waveforms: VMS, Interferential, premodulation, Asymmetric Biphasic, Systemic Biphasic, High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR.
- 4-Channel Combo: Delivers both 4 Channel Electrotherapy (TENS and NMES) and Therapeutic Ultrasound either simultaneously or independently. Ultrasound therapy (1 and 3 MHz) and electrotherapy stimulation with twelve (12) waveforms: VMS, Interferential, premodulation, Asymmetric Biphasic, Systemic Biphasic, High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR.
- Mobile: Lightweight device with ergonomically designed handle and optional battery. Optional custom carry case available for transporting the device safely and securely.
- Optional Cart: Optional cart with magnetic device attachment creates a secure connection between device and cart without the need for any tools during installation.
Dimensions: W-48cm, D-52cm, H-96cm (111cm with device on cart). Weight: 22.23 lb (10.1 kg)
- Warranty: During the two-year warranty period from the date of delivery of the product to the end customer, defects will be remedied at no charge to the customer upon the customer furnishing adequate proof that the defect is due to defects in material or workmanship. The warranty period for accessories is 90 days. Accessories consist of Lead Wires and Electrodes. The warranty period for the Therapy System Cart and Ultrasound Applicators is one year (12 months).
Click HERE to view Intelect Legend 2 Brochure
Click HERE to view Intelect Legend 2 User’s Manual
|
Intelect Legend 2 Combo Standard Accessories |
|
|
SKU/Part Number |
Description |
|
81-5010 |
Intelect Legend 2 Two Channel Combo Set |
|
81-5011 |
Intelect Legend 2 Four Channel Combo Set |
|
79967 |
Carbon electrodes |
|
42189 |
Dura-Stick+ 5cm2 Square Electrodes (4 Qty) |
|
70010 |
Stim Lead Wires CH 1 & 2 |
|
70011 |
Stim Lead Wires CH 3 & 4 (4 Ch Combo Only) |
|
12-10649 |
Nylatex Strap |
|
15-1062 |
5cm2 Ultrasound Applicator |
|
14679 |
Power Cord |
|
Intelect Legend 2 Combo Optional Accessories |
|
|
SKU/Part Number |
Description |
|
15-1136 |
Cart |
|
14-1086 |
Battery |
|
15-0160 |
1cm2 Applicator |
|
15-0161 |
2cm2 Applicator |
|
15-0163 |
10cm2 Applicator |
|
4248-12 |
Ultrasound Gel (12 bottles) |
|
79967 |
6x8cm Carbon Electrodes (Qty 4) |
|
15-1140 |
USB Drive |
|
Indications for Use – E-Stim |
For VMS (Pulsed Mode, Burst Mode, or FR Mode), Russian, Monophasic Hi-Volt (NMES) & Interferential, and Premodulated (IFS):
- Relaxation of muscle spasms
- Prevention or retardation of disuse atrophy
- Increasing local blood circulation
- Muscle re-education
- Maintaining or increasing range of motion
- Immediate postsurgical stimulation of calf muscles to prevent venous thrombosis
Additionally for Microcurrent, Interferential, Premodulated (IFS), VMS (Pulsed Mode, Burst Mode, or FR Mode), Asymmetrical Biphasic (TENS), and HANS: Symptomatic relief or management of chronic, intractable pain:
- Post-traumatic acute pain
- Post-surgical acute pain
For DC (Direct Current) Continuous Mode:
- Relaxation of muscle spasms
|
Indications for Use – Ultrasound |
Relief of pain, muscle spasms, and joint contractures associated with a wide variety of musculoskeletal injuries and conditions.
- “itis” conditions
- Muscle spasms
- Musculoskeletal syndromes/conditions
- Muscle & ligament strains and sprains
- Trigger points
- Relief of sub-chronic and chronic pain and joint contractures resulting from capsular tightness and scaring
SYSTEM SPECIFICATIONS
|

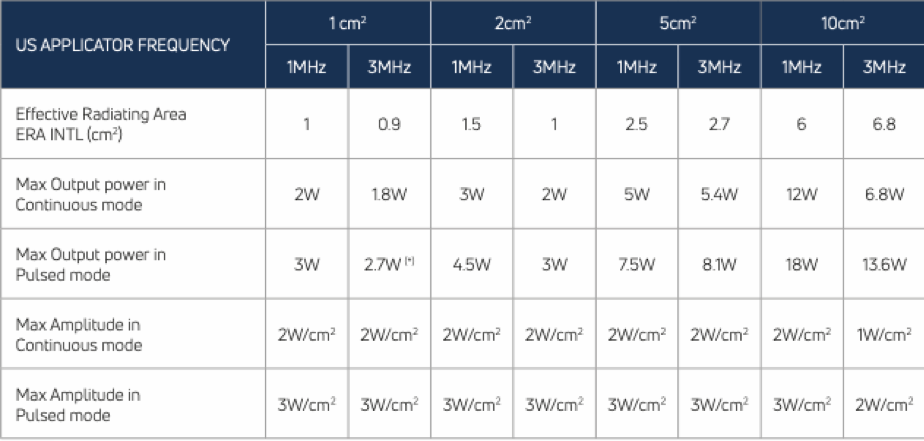

ULTRASOUND SPECIFICATIONS |
|
|
Frequency |
1 MHz +/- 10%; 3 MHz +/- 10% |
|
Duty Cycles |
10%, 20%, 50%, Continuous |
|
Pulse Repetition Rate |
100 Hz |
|
Pulse duration |
1 -5 ms Max (ON): 5 ms Min (OFF): 5ms |
|
Peak to Average Ratio |
1:1, at 50% Duty Cycle 4:1, at 20% Duty Cycle 9:1, at 10% Duty Cycle |
|
Beam Nonuniformity Ratio |
<5.1 |
|
Beam Type |
Collimating |
|
Treatment Time |
1 to 30 minutes |
|
ELECTRO STIMULATION SPECIFICATIONS |
NOTE: Advice on size and type of electrodes to be used is given in device User Interface treatment guidelines.
WAVEFORMS
|
IFC (Interferential) Traditional (4 Pole) |
Interferential Current is a medium frequency waveform. Current is distributed through two channels (four electrodes). The currents cross each other in the body at the area requiring treatment. The two currents interfere with each other at this crossing point, resulting modulation of the intensity (the current intensity increases and decreases at a regular frequency).
|
Output Mode |
Electrodes |
|
Available on Channels |
1 & 2, 3 & 4 |
|
Treatment Time |
1-60 Minutes |
|
Mode Selection |
CC |
|
Output Intensity |
0-100 mA (CC) |
|
Beat Frequency |
1-200 Hz |
|
Carrier Frequency |
2000-10,000 Hz |
|
Cycle Time |
Continuous or User Defined |
|
Sweep Time |
14 sec |
|
Sweep Low Beat Frequency |
1-199 Hz |
|
Sweep High Beat Frequency |
2-200 Hz |
|
Scan Percentage |
Static, 40%, 100%, Manual |
|
IRMS |
0-78mA |
|
DC component |
No |
|
TENS – Asymmetrical Biphasic |
The Asymmetrical Biphasic waveform has a short pulse duration. It is capable of strong stimulation of the nerve fibers in the skin as well as of muscle tissue. This waveform is often used in TENS devices. Because of its short pulse, the patient typically tolerates the current well, even at relatively high intensities.
|
Output Mode |
Electrodes |
|
Output Intensity |
0-140 mA (CC) 0-140 V (CV) |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Treatment Time (Combo) |
1-30 minutes |
|
Mode Selection (Stim) |
CC or CV |
|
Mode Selection (Combo) |
CV |
|
Amplitude Modulation |
0% (off) to 100% on 10% steps |
|
Burst Frequency |
0-10 bps |
|
Cycle Time |
Continuous or User Defined |
|
Frequency |
1 – 200 pps |
|
Frequency Sweep |
On/Off |
|
Phase Duration |
30-400 μsec |
|
Sweep Time |
14 seconds |
|
Sweep Low Frequency |
1 – 199 pps |
|
Sweep High Frequency |
2 – 200 pps |
|
IRMS |
0-50mA |
|
DC Component |
No |
|
TENS – Symmetrical Biphasic |
The Symmetrical Biphasic waveform has a short pulse duration and is capable of strong stimulation of nerve fibers in the skin and in muscle. This waveform is often used in portable muscle stimulation units, and some TENS devices.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Treatment Time (Combo) |
1-30 minutes |
|
Mode Selection (Stim) |
CC or CV |
|
Mode Selection (Combo) |
CV |
|
Output Intensity |
0-140 mA (CC) 0-140 V (CV) |
|
Amplitude Modulation |
0% (off) to 100% on 10% steps |
|
Burst Frequency |
0-10 bps |
|
Cycle Time |
Continuous or User Defined |
|
Frequency |
1 – 200 bps |
|
Frequency Sweep |
On/Off |
|
Phase Duration |
30-400 μsec |
|
Ramp |
0 – 5 seconds |
|
Sweep Time |
14 seconds |
|
Sweep Low Frequency |
1 – 199 pps |
|
Sweep High Frequency |
2 – 200 pps |
|
IRMS |
0-50mA |
|
DC Component |
No |
|
TENS – HAN |
The HAN Waveform provides optimal parameters with a precisely controlled sequence of Dense-and-Disperse (DD) modes of stimulation where a burst of 8 pulses at 80Hz is alternating with continuous stimulation (no burst), each lasting for 3 seconds.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Mode Selection |
CC |
|
Output Intensity |
0-100 mA (CC) |
|
Burst Frequency |
2 bps |
|
Frequency |
80 pps |
|
Phase Duration |
180 μsec |
|
IRMS |
0 – 19mA |
|
DC Component |
No |
|
Microcurrent |
Microcurrent is a monophasic waveform of very low intensity.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Mode Selection |
CC |
|
Output Intensity |
0-1000μA |
|
Duty Cycle |
50% |
|
Frequency |
0.1-1,000 pps |
|
Polarity |
Positive, Negative, or Alternating |
|
IRMS |
0 – 1mA |
|
DC Component |
No |
|
VMS |
VMS is a symmetrical biphasic waveform with a 100 µsec interphase interval. Because the pulse is relatively short, the waveform has a low skin load, making it suitable for applications requiring high intensities, such as in muscle re-education protocols.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Treatment Time (Combo) |
1-30 minutes |
|
Mode Selection |
CC or CV |
|
Output Intensity |
0-140 mA (CC) 0-140 V (CV) |
|
Anti-Fatigue |
Off or On |
|
Channel Mode |
Single, Reciprocal, Co-Contract |
|
Cycle Time |
Continuous or User Defined |
|
Frequency |
1 – 200 pps |
|
Phase Duration |
30-1000 μsec |
|
Ramp |
0 – 5 seconds |
|
Set Intensity |
Individual/both Channel Intensity, Setting in Reciprocal and Co-Contract Modes |
|
IRMS |
0-50mA |
|
DC Component |
No |
|
IFC Premodulated (Traditional 2-Pole) |
Premodulated Current is a medium frequency waveform. Current comes out of one channel (two electrodes). The current intensity is modulated: it increases and decreases
at a regular frequency (the Amplitude Modulation Frequency).
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Treatment Time (Combo) |
1-30 minutes |
|
Mode Selection |
CC or CV |
|
Output Intensity |
0-100 mA (CC) 0-100 V (CV) Carrier |
|
Beat Fixed (Sweep Off) |
1 – 200 Hz |
|
Cycle Time |
Continuous or User Defined |
|
Frequency |
2,000-10,000 Hz |
|
Sweep Low Beat Frequency |
1 – 199Hz |
|
Sweep High Beat Frequency |
2 – 200Hz |
|
Ramp |
0 – 5 seconds |
|
IRMS |
0-55mA |
|
DC Component |
No |
|
Russian |
Russian Current is a sinusoidal waveform, delivered in bursts or series of pulses.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time |
1-60 minutes |
|
Mode Selection |
CC or CV |
|
Output Intensity |
0-100 mA (CC) 0-100 V (CV) |
|
Burst Frequency |
1 – 100 bps |
|
Carrier Frequency |
2500Hz |
|
Cycle Time |
Continuous or User Defined |
|
Duty Cycle |
10%, 20%, 30%, 40%, 50% |
|
Ramp |
0 – 5 seconds |
|
IRMS |
0-55mA |
|
DC Component |
Yes |
|
VMS Burst |
VMS Burst is a symmetrical biphasic waveform delivered in a burst format. Because the pulse is relatively short, the waveform has a low skin load, making it suitable for applications requiring high intensities, such as muscle re-education protocols.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time |
1-60 minutes |
|
Mode Selection |
CC or CV |
|
Output Intensity |
0-140 mA (CC) 0-140 V (CV) |
|
Anti-Fatigue |
Off or On |
|
Burst Frequency |
1 – 200 bps |
|
Channel Mode |
Single, Reciprocal, Co-Contract Phase |
|
Cycle Time |
Continuous or User Defined |
|
Duration |
30-400 μsec |
|
Ramp |
0 – 5 seconds |
|
Set Intensity |
Individual/both Channel Intensity |
|
IRMS |
0-50mA |
|
DC Component |
No |
|
Direct Current (DC) |
Galvanic Current is a direct current flowing in one direction only. The current can be continuous or interrupted.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time |
1-60 minutes |
|
Mode Selection |
CC |
|
Output Intensity |
0-40 mA (CC) |
|
Cycle Time |
Continuous or User Defined |
|
Polarity Reversal |
On or Off. With Polarity Reversal on, Polarity will change in middle of the treatment time. |
|
IRMS |
0-44mA |
|
DC Component |
Yes |
|
VMS FR |
The VMS-FR version of the VMS waveform is a physiologically based channel interaction in which one channel stimulates the agonist and the other the antagonist of the muscle group that is being exercised. The agonistic channel initiates the movement with a brief burst of power, followed by a period of sustained activity to complete the movement. The antagonistic channel has a brief burst of power to slow down the initial acceleration of the agonist, followed by a low output to regulate the movement of the agonist. The movement is completed by a final burst of activity in both channels. VMS is a symmetrical biphasic waveform with a 100 μsec interphase interval. Because the pulse is relatively short, the waveform has a low skin load, making it suitable for applications requiring high intensities, such as in muscle re-education protocols.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time |
1-60 minutes |
|
Mode Selection |
CC |
|
Output Intensity |
0-140 mA (CC) |
|
Burst Duration |
200 – 5000ms |
|
Cycle Time |
TBD |
|
Frequency |
20 – 80 pps |
|
Phase Duration |
30-400 μsec |
|
IRMS |
0-39mA |
|
DC Component |
No |
|
High Voltage Pulsed Current (HVPC) |
The High Voltage Pulsed Current (HVPC) has a very brief pulse duration characterized by two distinct peaks delivered at high voltage. The waveform is monophasic (current flows in one direction only). The high voltage causes a decreased skin resistancemaking the current comfortable and easy to tolerate.
|
Output Mode |
Electrodes |
|
Available on Channels |
1, 2, 3, 4 |
|
Treatment Time (Stim) |
1-60 minutes |
|
Treatment Time (Combo) |
1-30 minutes |
|
Mode Selection |
CV |
|
Output Intensity |
0 – 500 V (CV) |
|
Cycle Time |
Continuous or User Defined |
|
Display |
Volts |
|
Frequency |
1 – 200 pps |
|
Polarity |
Positive or Negative |
|
Ramp |
0.5 – 5 seconds |
|
Sweep Time |
14 seconds |
|
Sweep High Frequency |
2 – 200 pps |
|
Sweep Low Frequency |
1 – 199 pps |
|
IRMS |
0-45mA |
|
DC Component |
0 – 1.5mA |
